We are Authorized and exclusive distributor for Dimetix products in india
Dimetix has developed and produced in Switzerland high-quality Laser Distance Sensors for the international market.
- sales@rendertechindia.com
- +91-8698009335
We are Authorized and exclusive distributor for Dimetix products in india. For more than 20 years, Dimetix has developed and produced in Switzerland high-quality Laser Distance Sensors for the international market.
Render is authorized distributor for Dimetrix Products in India
For over 20 years, Dimetix AG in Switzerland has been developing and producing top-quality laser distance sensors for the international market, always in accordance with our highest quality standards. Our dedicated and highly qualified team continuously ensures innovation and advancement of our globally unique sensors. This expertise enables our customers to realize even the most demanding applications.

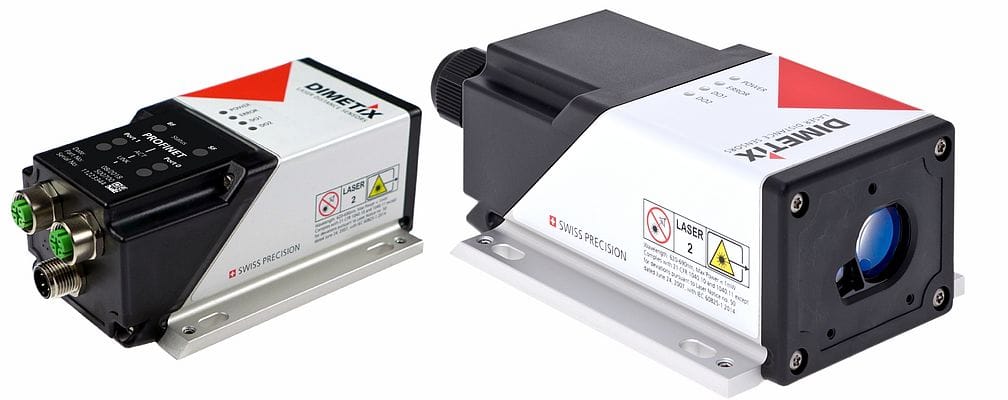

Dimetix Laser Distance Sensors
D-Series
The D-Series Dimetix Laser Distance Sensors are at the forefront of our continuous development and innovation. They measure long distances with the highest precision, reliability and speed, even in the most difficult situations. The D-series can measure on dark surfaces – even in exterior applications with solar irradiation. With this series, which is now avilable in a new modern design. Dimetix has expanded its product range with a device, that has an output rate of 1 kHz.
- Measuring range 0 to 500 m
- Max. measuring rate 250 Hz
- 1 mm accuracy
- Serial interfaces
- High precision analog output (0.1%)
- Two programmable digital outputs
- Digital input
- Digital output for error signalization
- Profibus interface (optional)
- PROFINET, EtherNet/IP and EtherCAT interfaces (optional)
- Degree of protection IP65
- Extended temperature range -40...+60°C
- AE0104 Floodgate position measurement
Dimetix laser distance sensors are used to monitor floodgates. This means that the amount of water outflow is known at all times. The sensors measure the exact position of the floodgates in millimeter-precision and absolutely contactless. - AE0112 Cutting application
In the metal industry, devices for length division are frequently used. However, many standard solutions, presently available on the market, are not optimal for some companies. With Dimetix laser distance sensors, an inexpensive special model is offered. - AE0202 Monitoring of pressure tunnel
An automatic monitoring system is used in a headwater pressure tunnel to measure the passive bias of penstocks during injections. As soon as the limit values were exceeded, an alarm lamp is illuminated, so that the injections can be stopped. - AE0203 Supervision of railway infrastructure
Accurate distance measurement is essential in railway construction – for new development as well for maintenance. Speed trains of the latest generation move at maximum speeds of over 300km/h, in order to preserve the rolling stock at such strains, millimeter precise measuring is inevitable. - AE0205 Monitoring of rockformation above railwaytrack
Dimetix sensors are used to monitor a debris flow activity. These rocks can lead to the accumulation of a mountain stream, which can lead to a flooding of a rail track. In addition, two additional lasers are used to monitor a large boulder that moves downhill and warns communities in danger. - AE0207 Movement of large structures
In order to move large structures as bridges and buildings, the PolyDist system is the optimal solution. With up to four Dimetix sensors the process of moving is constantly monitored so that the structure can be moved and repositioned precisely.
FAQs
What is a Dimetix distance sensor and how does it work?
The Dimetix distance sensor is a high precision sensor that uses laser distance measurement technology to accurately determine distances. It emits a laser beam towards a target surface and calculates the distance based on the time it takes for the laser beam to reflect back to the sensor.
What are the key features of the Dimetix distance sensor?
- High precision measurement capabilities with accuracy up to millimeter-level.
- Long-range measurement capabilities, reaching distances of hundreds of meters.
- Robust construction suitable for various environmental conditions.
- Quick response time for real-time distance detection.
In which industries are Dimetix distance sensors commonly used?
- Construction and civil engineering for surveying and monitoring applications.
- Industrial automation for precise positioning and measurement tasks.
- Mining and quarrying for monitoring stockpile levels and equipment positioning.
- Aerospace and defense for target tracking and distance measurement applications.
What are the benefits of using Dimetix distance sensors?
- Improved accuracy and precision in distance measurement tasks.
- Increased efficiency and productivity in various industrial processes.
- Enhanced safety by enabling remote and contactless distance detection.
- Cost-effective solution compared to traditional measurement methods.
How does Dimetix distance sensor contribute to advancing distance detection technology?
- By offering high precision and long-range measurement capabilities.
- By providing reliable and accurate distance data for critical applications.
- By streamlining processes and improving overall operational efficiency.
